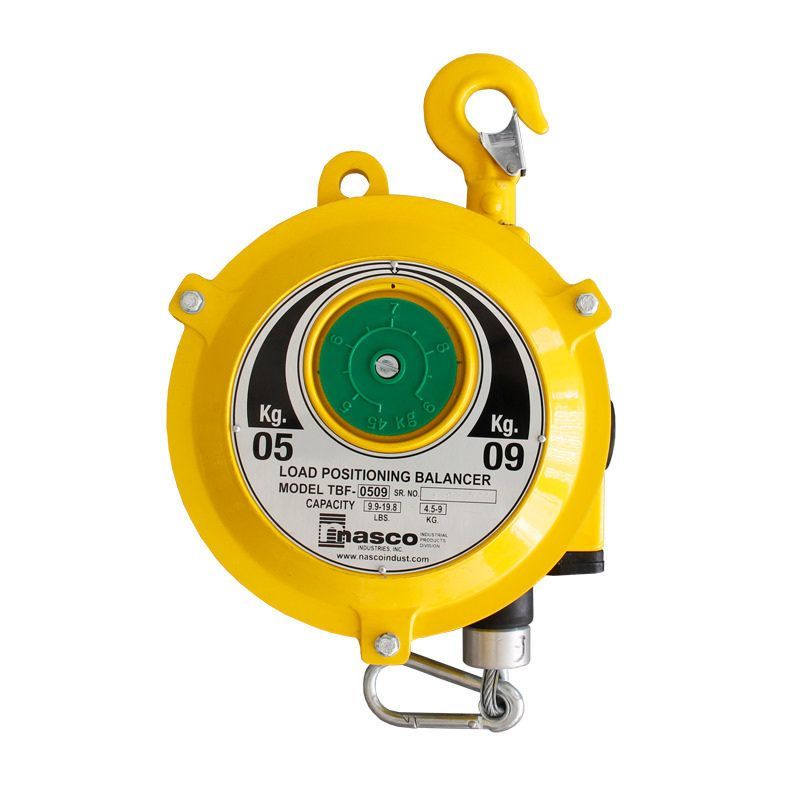

TBF-0509 Nasco 9.9-19.8 lbs / 4.5-9 kg - Medium Capacity Load Balancer

TBF-0509 Nasco 9.9-19.8 lbs / 4.5-9 kg - Medium Capacity Load (Zero Gravity) Balancer

High quality assembly solution and support system that increases productivity, promotes a safe environment, prevents injuries, and delivers assembly ergonomics.

Product Details

• Load Capacity: Medium
• Load Range: 9.9-19.8 lbs / 4.5-9 kg
• Balancer Weight: 7.5 lbs
• Locking Mechanism: Non Lockable
• Tension Adjustment: Adjustable
• Housing Material: Aluminum
• Cable Travel: 59"
• Cable Diameter: 0.16"
• Cable Material Options: Steel
• Tool Capacity: Air/Electric

Features

• Weight Defying Zero Gravity Balancers: Tapered cable drum makes the load virtually weightless throughout the entire length of cable travel - load remains where positioned
• External Balancing Adjust: Balancing force can be set exactly through a hardened worm gear system. No special tools required. No instant spring release.
• Weight indicator Dial: Indicates approximate balancing adjust setting.
• Manual Drum Lock: Suspended tools can be changed safely by engaging the manual drum lock.
• Rugged Metal Housing: Improves durability in industrial environments.
